140 Series High-Performance Hung Aluminum Windows for American Homes

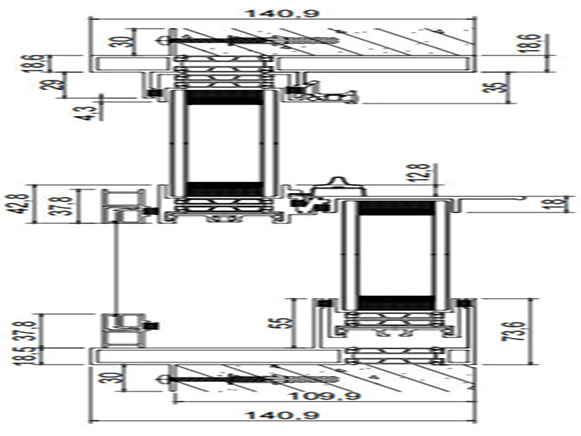

The Dimax 140 Series hung aluminum window system is engineered for residential and light commercial projects across North America requiring superior thermal insulation, durable construction, and classic operation. Featuring a robust 3.0 mm profile thickness, a 35.3 mm wide thermal break, and precision-cast hardware, this system delivers exceptional energy efficiency, smooth performance, and long-term reliability. Designed with a narrow meeting stile, concealed top/bottom sash profiles, and integrated installation fins, it offers clean aesthetics and simplified installation for modern energy-conscious homes.
Key Features:
- 3.0 mm profile thickness with narrow meeting stile, concealed sash profiles, and integrated installation fins for structural strength and streamlined appearance
- 35.3 mm wide thermal break accommodating triple glazing for outstanding thermal insulation and energy savings
- Precision-Cast Hardware replacing common plastic components ensures smooth operation and extended service life
- Currently Pursuing CSA and NFRC Certifications to meet rigorous North American performance standards
- Multiple Glazing Options and premium powder coatings from Interpon or Dulux for customized performance and aesthetics
Dimax Windows & Doors – Certifications & Compliance
Dimax offers a comprehensive range of aluminum window and door systems developed for different international markets. Selected product series and configurations are designed and tested to support compliance with regional standards, including Australian, North American, and European requirements, such as AS2047, NFRC, CSA, Florida Building Code (Miami-Dade), and applicable EN standards. Certification applicability varies by product series, opening type, and configuration. Detailed certification documentation is available upon request.
learn moreDesign Options
Solid-Color Powder-Coated Aluminum Frames
Dimax Our aluminum doors and windows feature high-performance, factory-applied powder-coated finishes, available in a wide range of solid colors. Designed to meet U.S. standards and architectural requirements, these finishes deliver long-lasting durability, excellent color stability, and a clean, modern appearance suitable for residential and commercial applications alike. All finishes are engineered for superior resistance to corrosion, fading, and weathering, making them ideal for diverse climates, including coastal and high-exposure environments.
FOR
PROS
Key Benefits of Our Aluminum Frame Finishes
- • Durable Powder-Coated Finish
- • Factory-applied powder coating provides excellent protection against corrosion, UV exposure, and everyday wear.
- • Color Consistency & Longevity
- • Advanced coating technology ensures long-lasting color performance with minimal fading over time.
- • Designed for U.S. Climate Conditions
- • Suitable for a wide range of environments, from coastal regions to areas with high sun exposure and temperature variation.
- • Low Maintenance
- • Easy to clean with mild soap and water, helping maintain appearance and performance with minimal upkeep.
- • Architectural Versatility
- • Solid-color options complement modern, contemporary, and traditional architectural styles.

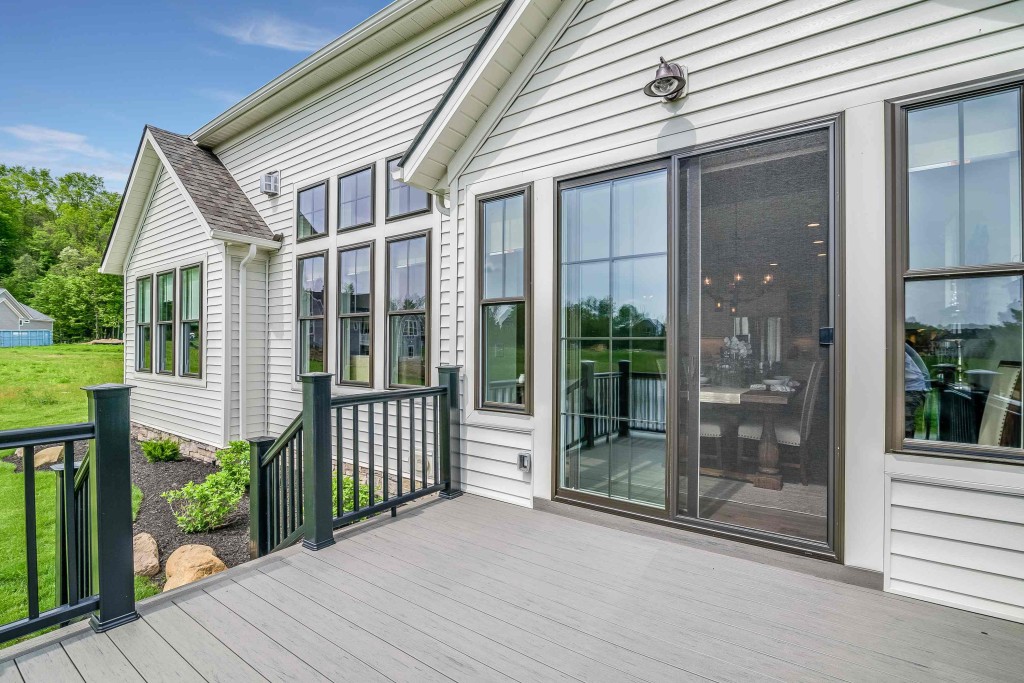

140 Series Classic Hung Aluminum Windows for American Homes
The Dimax 140 Series Hung Window system is engineered for residential and light commercial projects across North America requiring timeless operation, reliable performance, and versatile design. Constructed with high-strength 6063-T5 aluminum profiles at a 3.0 mm wall thickness and a load-bearing capacity of 30 kg, the system supports blade widths from 600 to 1200 mm and heights from 600 to 1900 mm, offering flexible configurations to suit traditional and contemporary architectural styles. Certified to NFPC, CSA, and CE standards, the 140 Series delivers dependable weather resistance, achieving ultimate wind pressure up to +2000 Pa and water resistance of +330 Pa. With sound insulation rated up to Rw 35 dB and thermal performance of Uw 1.7 W/m²·K, it ensures a comfortable indoor environment while accommodating a wide range of glazing options—including single-pane, laminated, double-layer tempered, tempered laminated, and triple-layer tempered glass. Finished with premium powder coatings from Interpon or Dulux, backed by 10- or 20-year warranties, and fitted with precision hardware from KIN LONG, BONWAY, or ROTO, the 140 Series hung window is available in multiple configurations (H, HH, HHH, H/H, HH/HH, or custom designs). Optional fiberglass or stainless steel flyscreens and versatile mounting methods—nailing fin, clip/strap, direct bolt, embedded, or brickmould—make it ideal for new construction and retrofit projects where classic hung window operation, durability, and design adaptability are essential.
Customize Your Classic Hung Window Solution
Dimax 140 Series hung windows are engineered for residential and light commercial projects across North America where timeless functionality, structural reliability, and design versatility are paramount. Constructed with high-strength 6063-T5 aluminum profiles at a robust 3.0 mm wall thickness and a load-bearing capacity of 30 kg, the system supports blade widths from 600 to 1200 mm and heights from 600 to 1900 mm, offering flexible configurations to complement both traditional and contemporary architectural styles. Certified to NFPC, CSA, and CE standards, the 140 Series delivers proven weather resistance, achieving ultimate wind pressure up to +2000 Pa and water resistance of +330 Pa, ensuring dependable performance in diverse climates.
Built as a performance-oriented window system rather than a standard product, the 140 Series integrates advanced sealing technology and precision hardware from trusted brands like KIN LONG, BONWAY, or ROTO to deliver consistent airtightness, smooth operation, and long-term durability. With sound insulation rated up to Rw 35 dB and thermal performance of Uw 1.7 W/m²·K, it creates a comfortable indoor environment while accommodating a wide selection of glazing options—including single-pane, laminated, double/triple-layer tempered, and insulated glass units. Finished with premium powder coatings from Interpon or Dulux, backed by 10- or 20-year warranties, the system maintains its aesthetic appeal and corrosion resistance for decades.
With extensive testing and certification to international standards, the 140 Series hung window system reflects Dimax's commitment to quality and project-specific customization. Our team collaborates closely with builders, architects, and developers to tailor frame details, glass configurations, surface finishes, and mounting methods—such as nailing fin, clip/strap, direct bolt, embedded, or brickmould. Available in multiple configurations (H, HH, HHH, H/H, HH/HH, or custom designs) and featuring optional fiberglass or stainless steel flyscreens, the 140 Series ensures each solution meets project performance expectations while preserving design intent.
Our Factory
15,000 m² vertically integrated manufacturing campus with over 1,00 skilled workers, supporting consistent quality control and reliable delivery timelines.
Insulated Glass Assembly
Sealing & Quality Control
Semi-finished Window & Door Frames
Dimax – OEM Partner for Aluminum Window and Door Systems
Dimax offers OEM aluminum window and door solutions with flexible customization options, including size, finish, opening configuration, and brand integration. Our system-based approach supports architectural intent while maintaining consistent performance and manufacturability.
