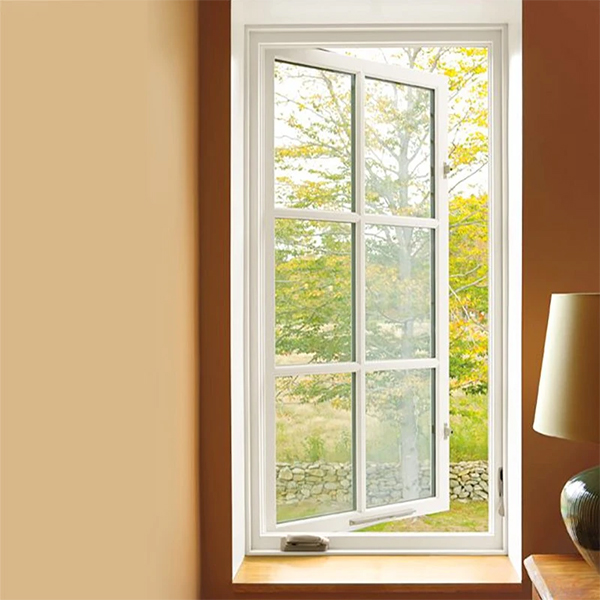

100 Series Side-Hinged Aluminum Windows for American Homes
The Dimax 100 Series side-hinged aluminum window system is engineered for residential and light commercial projects across North America requiring certified performance, durability, and classic operation. Rigorously tested to meet the North American Fenestration Standard (NAFS-AAMA101), this system delivers proven air, water, and structural resistance, ensuring reliable performance in diverse U.S. climates. Designed with precision-extruded 6063-T5 aluminum profiles and smooth-operating hardware, it combines traditional side-hinged functionality with modern engineering for enhanced ventilation and everyday convenience.
Key Features:
- NAFS-AAMA101 certified, meeting strict North American performance standards for air infiltration, water penetration, and structural loads
- High-strength 6063-T5 aluminum frame with 2.0mm thickness and premium powder coatings from Interpon or Dulux (10/20-year warranty)
- Smooth side-hinged operation with multi-point locking hardware from KIN LONG, BONWAY, or ROTO for security and ease of use
- Compatible with single, double, laminated, or tempered glass options to meet thermal, safety, and acoustic needs
- Optional fiberglass or stainless steel flyscreen and multiple mounting methods (nailing fin, clip/strap, direct bolt, embedded, brickmould) for versatile installation
Dimax Windows & Doors – Certifications & Compliance
Dimax offers a comprehensive range of aluminum window and door systems developed for different international markets. Selected product series and configurations are designed and tested to support compliance with regional standards, including Australian, North American, and European requirements, such as AS2047, NFRC, CSA, Florida Building Code (Miami-Dade), and applicable EN standards. Certification applicability varies by product series, opening type, and configuration. Detailed certification documentation is available upon request.
learn moreDesign Options
Solid-Color Powder-Coated Aluminum Frames
Dimax Our aluminum doors and windows feature high-performance, factory-applied powder-coated finishes, available in a wide range of solid colors. Designed to meet U.S. standards and architectural requirements, these finishes deliver long-lasting durability, excellent color stability, and a clean, modern appearance suitable for residential and commercial applications alike. All finishes are engineered for superior resistance to corrosion, fading, and weathering, making them ideal for diverse climates, including coastal and high-exposure environments.
FOR
PROS
Key Benefits of Our Aluminum Frame Finishes
- • Durable Powder-Coated Finish
- • Factory-applied powder coating provides excellent protection against corrosion, UV exposure, and everyday wear.
- • Color Consistency & Longevity
- • Advanced coating technology ensures long-lasting color performance with minimal fading over time.
- • Designed for U.S. Climate Conditions
- • Suitable for a wide range of environments, from coastal regions to areas with high sun exposure and temperature variation.
- • Low Maintenance
- • Easy to clean with mild soap and water, helping maintain appearance and performance with minimal upkeep.
- • Architectural Versatility
- • Solid-color options complement modern, contemporary, and traditional architectural styles.
100 Series Side-Hinged Aluminum Windows for American Homes
The Dimax 100 Series Side-Hinged Window system is engineered for residential and light commercial projects requiring classic operation, dependable performance, and design versatility. Built with 6063-T5 aluminum profiles at a 2.0 mm wall thickness and a load-bearing capacity of 60 kg, the system supports blade widths from 600–800 mm and heights from 600–1600 mm, offering flexible configurations for various architectural styles. Certified to NFPC, CSA, and CE standards, the 100 Series delivers reliable weather resistance, achieving ultimate wind pressure up to +3000 Pa and water resistance of +720 Pa. With sound insulation rated up to Rw 37 dB and thermal performance of Uw 1.5 W/m²·K, it ensures a comfortable indoor environment while accommodating a wide range of glazing options—including single-pane, laminated, double-layer tempered, tempered laminated, and triple-layer tempered glass. Finished with premium powder coatings from Interpon or Dulux and fitted with hardware from KIN LONG, BONWAY, or ROTO, the 100 Series side-hinged window is available in multiple configurations (C, CC, CCC, C/C, CC/CC, FCF, CFC, FC, PCC, or custom designs). Optional fiberglass or stainless steel flyscreens and versatile mounting methods—nailing fin, clip/strap, direct bolt, embedded, or brick mould—make it ideal for new construction and retrofit projects where reliable performance and classic side-hinged operation are desired.
Customize Your Classic Side-Hinged Window Solution
Dimax 100 Series side-hinged windows are engineered for residential and light commercial projects where reliable performance, classic operation, and design flexibility are essential. Constructed with precision-extruded 6063-T5 aluminum profiles and tested to meet NFPC, CSA, and CE standards, the 100 Series delivers dependable weather resistance and smooth everyday functionality, while maintaining clean architectural lines suited for both traditional and contemporary American homes.
Built as a performance-oriented window system rather than a standard product, the 100 Series supports flexible sizing and configuration to accommodate various façade designs and opening preferences. Advanced sealing technology and precision hardware from trusted brands like KIN LONG, BONWAY, or ROTO work together to ensure consistent airtightness, water resistance up to +720 Pa, and structural stability tested to withstand +3000 Pa wind pressure. With sound insulation rated up to Rw 37 dB and thermal performance of Uw 1.5 W/m²·K, it creates a comfortable indoor environment while accommodating a wide selection of glazing options—from single-pane to triple-layer tempered glass.
With extensive testing and certification to international standards, the 100 Series side-hinged window system reflects Dimax's commitment to quality and project-specific customization. Our team collaborates closely with builders, architects, and developers to tailor frame details, glass configurations, surface finishes (Interpon or Dulux powder coatings with 10/20-year warranties), and mounting methods—including nailing fin, clip/strap, direct bolt, embedded, or brick mould. Optional fiberglass or stainless steel flyscreens add functionality, ensuring each solution meets project performance expectations while preserving design intent.
Our Factory
15,000 m² vertically integrated manufacturing campus with over 1,00 skilled workers, supporting consistent quality control and reliable delivery timelines.
Insulated Glass Assembly
Sealing & Quality Control
Semi-finished Window & Door Frames
Dimax – OEM Partner for Aluminum Window and Door Systems
Dimax offers OEM aluminum window and door solutions with flexible customization options, including size, finish, opening configuration, and brand integration. Our system-based approach supports architectural intent while maintaining consistent performance and manufacturability.
