Aluminum French Door DM150 for High-Performance Australian Applications
The DM150 non-thermal break aluminum French door system is engineered as a high-performance Australian-standard door solution for residential and commercial projects requiring superior structural strength, durability, and long-term reliability. Built on a reinforced 150mm aluminum frame system, the DM150 French door delivers enhanced wind-load resistance and stable operation under demanding Australian climate conditions. Unlike entry-level door systems, the DM150 is designed as a true system-based French door, with frame structure, hardware compatibility, sealing performance, and glazing options engineered to work together in accordance with AS2047 requirements. The classic French door configuration provides wide, elegant openings and excellent natural light, making it ideal for main entrances, patio access, balconies, and high-end residential or commercial façades. With flexible configurations and premium hardware integration, the DM150 French door combines architectural aesthetics with reliable performance beyond standard aluminum doors.
Key Features:

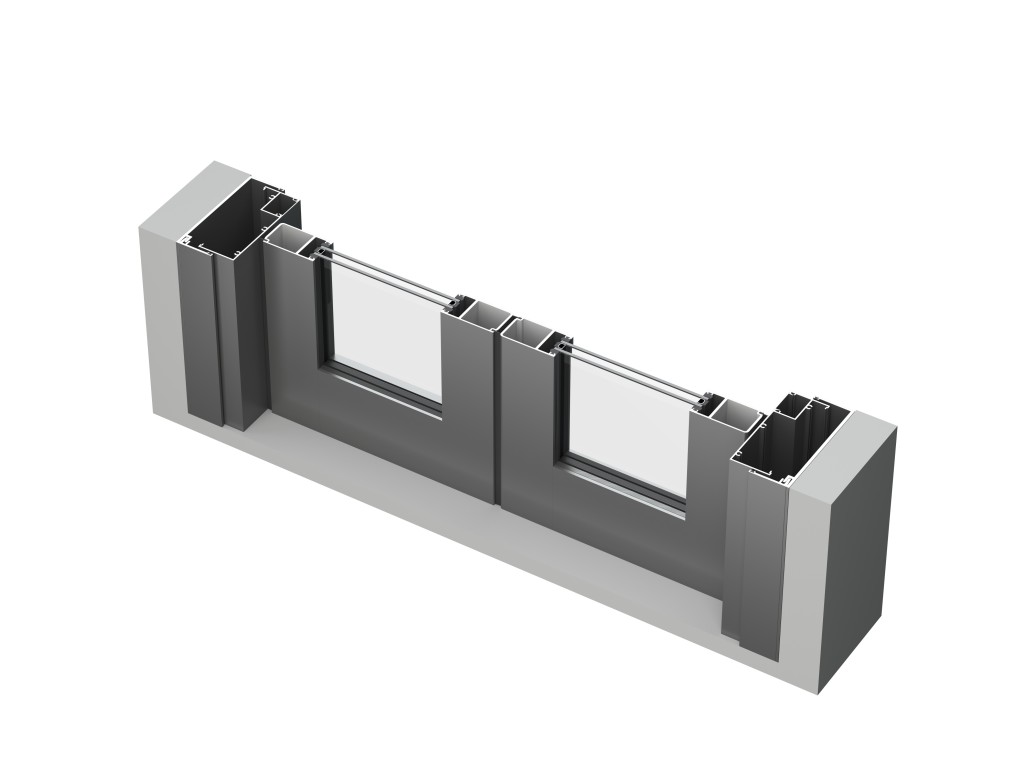

- Reinforced 150mm non-thermal aluminum frame system
- Designed to meet AS2047 Australian Standards
- High wind-load and weather resistance for exposed environments
- Classic French door opening with wide clear access
- Multi-point locking system for enhanced security
Dimax Windows & Doors – Certifications & Compliance
Dimax offers a comprehensive range of aluminum window and door systems developed for different international markets. Selected product series and configurations are designed and tested to support compliance with regional standards, including Australian, North American, and European requirements, such as AS2047, NFRC, CSA, Florida Building Code (Miami-Dade), and applicable EN standards. Certification applicability varies by product series, opening type, and configuration. Detailed certification documentation is available upon request.
learn moreDesign Options
Solid-Color Frames
Dimax aluminum doors and windows feature durable factory-applied powder-coated finishes, offering a range of solid color options designed to suit different architectural styles and project requirements.
FOR
PROS
Key points for the use of Australian standard aluminum alloy doors and windows
- • Key Considerations for Frame Finishes
- • • Powder-coated aluminum finishes provide long-term resistance to corrosion and weathering, making them suitable for a wide range of environments.
- • • Color selection can influence heat absorption and visual integration with surrounding architecture, particularly in high-exposure or coastal areas.
- • • Regular cleaning with neutral detergents helps maintain surface appearance and prolong finish performance.

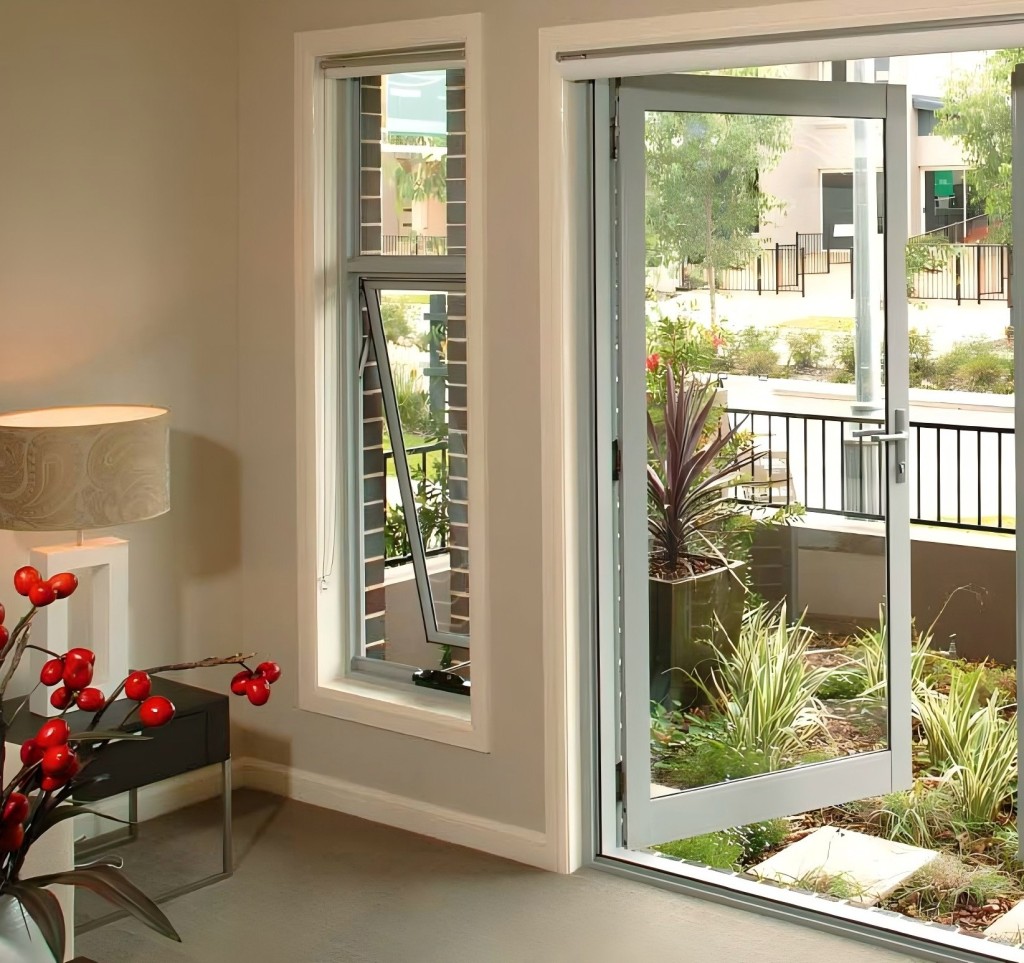

Aluminum French Doors for Australian Homes | DM150 Non-Thermal Series | AS2047 Compliant
Dimax DM150 aluminum French doors are developed for Australian residential and light commercial applications where secure access, architectural openness, and reliable performance are required. Built on a reinforced 150mm non-thermal aluminum door system, the DM150 series delivers improved structural stability and long-term durability compared with standard residential door solutions.
Featuring precision-engineered aluminum profiles and system-compatible hardware, DM150 French doors are designed to perform reliably under Australian wind and weather conditions while maintaining smooth swing operation. The classic double-leaf French door configuration allows generous openings for indoor-outdoor connection, making the system suitable for balconies, patios, living spaces, and main entry applications.
System Options: Single French door / Double French door / French door with sidelight, with optional flyscreen integration
Material: 6063-T5 aluminum alloy
Glass Options: Single-pane glass, laminated glass, double-layer tempered glass, tempered laminated glass, triple-layer tempered glass
Hardware: KIN LONG, BONWAY, Doric, or equivalent Australian-compatible door hardware systems
Surface Finish: High-quality powder-coated finish (Interpon, Dulux, or equivalent) Warranty options: 10 or 20 years
Performance data is based on tested configurations designed to comply with AS2047 Australian Standards for residential door systems.
Performance (DM150 French Door):
Air Infiltration: 75 Pa
Design Wind Pressure: 970 Pa
Water Resistance: 291 Pa
Ultimate Wind Pressure: 1500 Pa
Insulation & sound performance: configurable according to project requirements
Flexible installation options include sub sill, sub head, fin fix, face fix, and timber reveal, allowing the system to adapt to common Australian construction and renovation methods.
Typical applications include residential houses, apartments, townhouses, balconies, patio openings, and renovation or new-build projects requiring AS2047-compliant aluminum French door systems.
Customize Your High-Performance French Door
Dimax provides customized DM150 non-thermal aluminum French door solutions for residential and light commercial projects requiring secure access, architectural openness, and reliable Australian-standard performance. Built on a reinforced 150mm aluminum door system, the DM150 French door series is engineered for applications where durability, stability, and long-term operation are essential.
Developed to comply with AS2047 Australian Standards, the DM150 French door system delivers dependable swing-door performance under Australian wind and weather conditions. Precision-engineered aluminum profiles, system-matched hardware, and multi-point locking options ensure smooth operation, enhanced security, and consistent sealing performance over time.
The system-based French door design supports flexible customization, including single French doors, double French doors, and French doors with sidelights, allowing seamless integration into various architectural layouts. The classic French door configuration creates wide, open connections between indoor and outdoor spaces while maintaining structural integrity and compliance certainty.
With over 20 years of industry experience, Dimax works closely with builders, architects, and project teams throughout the design and development process. French door configurations, glazing specifications, technical drawings, and reference images are welcome, and professional support is available to ensure each DM150 French door solution meets Australian Standards and project expectations.
Our Factory
15,000 m² vertically integrated manufacturing campus with over 1,00 skilled workers, supporting consistent quality control and reliable delivery timelines.
Insulated Glass Assembly
Sealing & Quality Control
Semi-finished Window & Door Frames
Dimax – OEM Partner for Aluminum Window and Door Systems
Dimax offers OEM aluminum window and door solutions with flexible customization options, including size, finish, opening configuration, and brand integration. Our system-based approach supports architectural intent while maintaining consistent performance and manufacturability.
