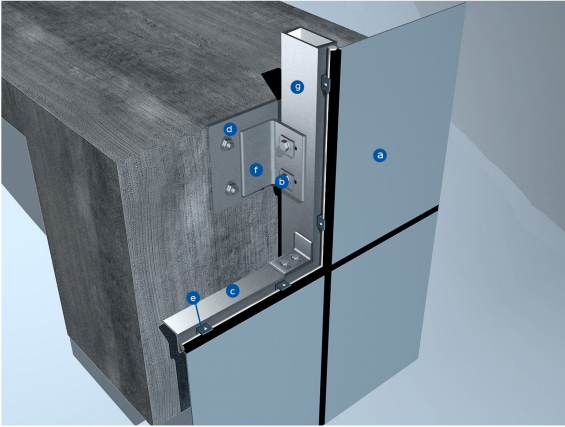

Commercial-Grade Aluminum Panel Curtain Wall for High-Rise Structures
The Aluminum Panel Curtain Wall system is a premium facade solution tailored for mid-to-high-rise commercial buildings, offering exceptional structural durability and aesthetic versatility. Built with reinforced aluminum panels and robust steel connection components, this curtain wall system balances long-term performance, weather tightness, and design flexibility for modern architectural projects.
Key Features:
- Commercial-grade aluminum panel curtain wall optimized for high-rise and institutional buildings
- Reinforced galvanized steel tube and angle components for seismic and wind load resistance
- Compatible with a wide range of decorative, insulated, and reflective aluminum panel options
- Secure cast-in plate and multi-bolted hardware systems for reliable structural installation
- Optional thermal and acoustic insulation for improved energy efficiency and occupant comfort
HANLUN Curtain Wall – Testing, Certification & Code Compliance
HANLUN Curtain Wall systems are engineered and evaluated to support compliance with applicable building codes and performance requirements across different international markets. Testing and certification may include structural performance, air and water resistance, wind load, and project-specific façade system evaluation in accordance with applicable standards such as ASTM, AAMA, AS/NZS, EN, and regional building code requirements (including Florida Building Code where applicable). Certification scope and applicability may vary by system configuration, project conditions, and installation method. Detailed testing reports and compliance documentation are available upon request to support specific project needs.
Request Compliance InformationDesign Options
Aluminium Curtain Wall Finish & Color Options
Our aluminium curtain wall systems feature durable, factory-applied architectural finishes designed for long-term exterior performance. A wide range of solid color options is available to support diverse architectural styles, climate conditions, and international project requirements. Finishing solutions include high-performance powder coating, PVDF coating for high-rise and coastal environments, anodized aluminium finishes, and customized RAL color selections to match project specifications. All coatings are engineered for UV resistance, corrosion protection, and long-term color stability across global markets.
FOR
PROS
Key Considerations for Curtain Wall Finishes
- • • Powder-coated aluminium provides excellent resistance to corrosion, weathering, and UV exposure, making it suitable for commercial and residential façade systems worldwide.
- • • PVDF coating is recommended for high-rise buildings and coastal environments requiring enhanced durability and salt spray resistance.
- • • Lighter colors help reduce solar heat absorption in hot climates, while darker finishes create bold architectural façade aesthetics.
- • • Regular maintenance using neutral detergents helps maintain surface appearance and extend coating lifespan.
Aluminum Panel Curtain Wall for High-Wind & Commercial Applications
The ProGuard Aluminum Panel Curtain Wall system is engineered for extreme wind resistance and structural performance in coastal, hurricane-prone, and high-rise commercial regions, delivering superior load-bearing capacity, weather tightness, and facade durability beyond standard aluminum curtain walls. Built with premium single aluminum panels and a reinforced galvanized steel framing system, the curtain wall supports large-scale building envelopes from 600–1800 mm in panel width and 1200–3000 mm in height, while maintaining long-term corrosion resistance, ASTM and AAMA certified performance, and seamless architectural integration.
Equipped with M12×120 stainless steel bolts, precision cast-in plates, and multi-gauge galvanized steel angles/tubes, the system achieves air infiltration rates under 0.1 L/(m²·s) (AAMA 501.2) and water penetration resistance up to 1200 Pa (AAMA 501.1), with wind load resistance rated to Large Missile Level D (ASTM E1886/E1996). With thermal break integration at U-value 1.8 W/(m²·K) and sound insulation up to Rw 45 dB, the system balances safety, comfort, and energy efficiency. Finished with premium fluorocarbon or powder coatings from AkzoNobel and Sikkens, and paired with heavy-duty structural hardware, the aluminum panel curtain wall is designed for fixed, unitized, or fully customized configurations, making it ideal for commercial high-rises, coastal mixed-use developments, and high-risk wind zone applications where certified structural protection is essential.
Customize Your Cyclone-Resistant Aluminum Panel Curtain Wall Solution
The Aluminum Panel Curtain Wall system is engineered for cyclone-prone coastal regions and high-rise structures where certified wind load resistance and facade durability are non-negotiable. Designed with heavy-duty single aluminum panels and a corrosion-resistant galvanized steel support system, this curtain wall forms a robust barrier against extreme wind gusts, driving rain, and windborne debris, while maintaining clean, contemporary architectural lines for commercial, hospitality, and luxury residential developments.
Engineered as a high-performance facade solution rather than conventional cladding, our Aluminum Panel Curtain Wall offers fully customizable panel dimensions, framing layouts, and hardware configurations to align with unique project requirements. Precision-machined components—including 40×40×4mm and 125×80×8mm galvanized steel angles, 90×50×4mm steel tubes, and M12×120 stainless steel bolts—work with advanced perimeter sealing to deliver industry-leading air-tightness, water penetration resistance, and structural rigidity, safeguarding building envelopes even during Category 5 hurricane events.
Backed by rigorous testing to ASTM, AAMA, and regional cyclone standards, our Aluminum Panel Curtain Wall embodies our commitment to safety-focused engineering and tailored facade design. We partner closely with construction teams, architects, and developers to refine panel profiles, surface finishes, anchoring systems, and installation strategies, ensuring every curtain wall solution meets strict performance benchmarks while preserving the project’s intended architectural character and functional objectives.
Our Factory
15,000 m² vertically integrated manufacturing campus with over 1,00 skilled workers, supporting consistent quality control and reliable delivery timelines.
Insulated Glass Assembly
Sealing & Quality Control
Semi-finished Window & Door Frames
Dimax – OEM Partner for Aluminum Window and Door Systems
Dimax offers OEM aluminum window and door solutions with flexible customization options, including size, finish, opening configuration, and brand integration. Our system-based approach supports architectural intent while maintaining consistent performance and manufacturability.
